- Artikel-Nr.: RC-220_20A

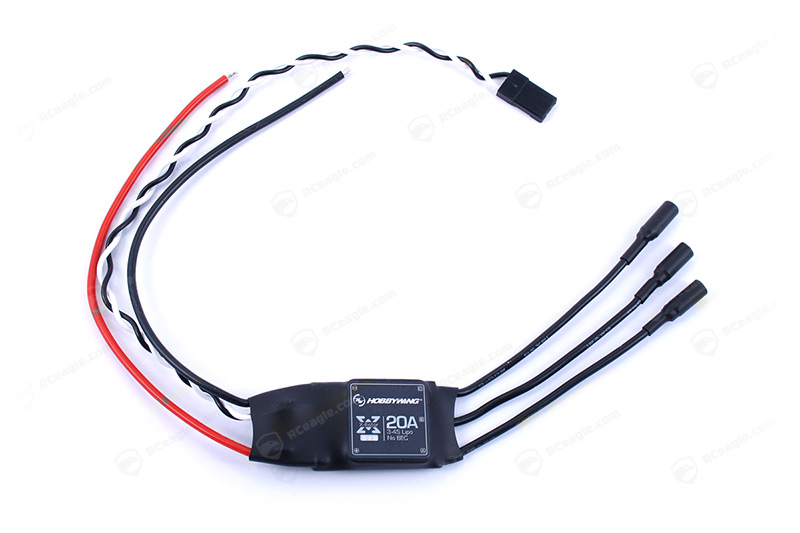

Die Hobbywing XRotor Serie ist speziel optimiert für den Einsatz für Multicopter (Quadrocopter, Hexacopter, Octocopter). Optimierte Gasannahme und abgestimmt für Disk-Type Motoren.
Diese Version ist mit Motoranschlusskabeln.
Technische Daten:
Dauerstrom: 20A
Strom max. (10s): 30A
BEC: Nein
Zellenzahl LiPo: 3-4S
Gewicht: 14g
Steuerkabel: 19cm
Motorkabel: 7cm
Stromkabel: 13cm
Motorkabel Goldkontaktstecker: 3.5mm
Abmessung: 52.4 x 21.5 x 7
Beispielanwendung: 330er/450er Quadrocopter

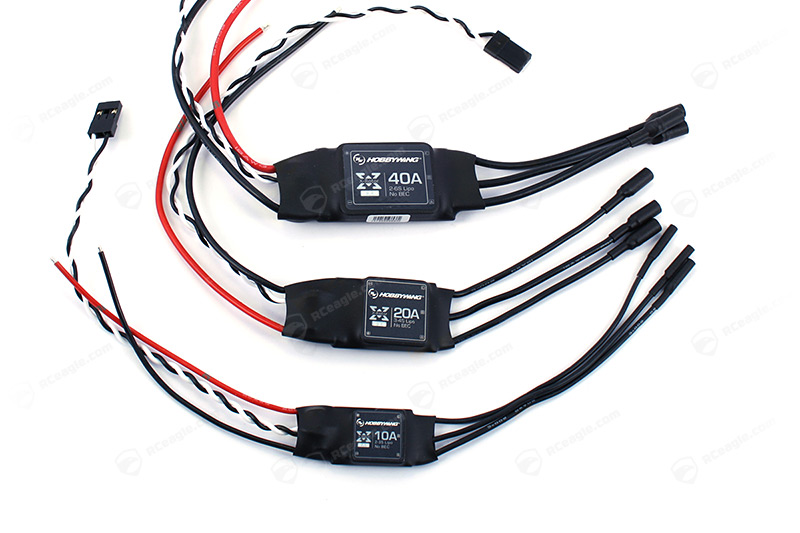

Model | Con. | Peak Current | BEC | LiPo | Weight | Size | Typical Applications* | |
XRotor-10A | 10A | 15A | No | 2-3S |
| 6.5g | 36.5 x 16.4 x 4.1 | 250 Class Quadcopter |
XRotor-20A | 20A | 30A | No | 3-4S | 14g | 52.4 x 21.5 x 7 | 330/450 Class | |
XRotor-40A | 40A | 60A | No | 2-6S | 26g | 68 x 25 x 8.7 | 550/650 Class | |
XRotor-50A | 50A | 70A | No | 2-6S |
| 46g | 48 x 30 x 15.5 | Over 650 Class |
Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form. |
3 Compatibility Test
Compatibility Test Result of Motors and XRotor ESC | |||||
Motor Brand | Motor Model | KV | Test Conditions | Compatibility Test Result | |
Propeller | Voltage | ||||
HLY (HengLiYuan) | 4822 | 690 | 1238/1340 | 4S Lipo | Passed |
390 | 1238/1240 | 6S Lipo | Passed | ||
4225 | 610 | 1238 | 4S Lipo | Passed | |
390 | 1238/1447 | 6S Lipo | Passed | ||
SunnySky | V3508 | 580 | APC1238 | 4S Lipo | Passed |
X4112S | 400 | 1447/1550 | 4-6S Lipo | Passed | |
485 | 1447/1550 | 4-6S Lipo | Passed | ||
X4108S | 380 | 1447/1550 | 4-6S Lipo | Passed | |
480 | 1447/1550 | 4-6S Lipo | Passed | ||
600 | 1447/1550 | 4S Lipo | Passed | ||
X2212 | 980 | 1047 | 3S Lipo | Passed | |
V2216 | 900 | 1047 | 3S Lipo | Passed | |
X4110S | 400 | 1238/1550 | 4-6S Lipo | Passed | |
Crazy Motor | 5008 | 335 | 1555/1655 | 6S Lipo | Passed |
Feiyue | 5008 | 340 | 17-18 inch | 6S Lipo | Passed |
DualSky | XM5015 | 390 | 1550 | 6S Lipo | Passed |
XM5010 | 700 | 1450 | 3S Lipo | Passed | |
4010 | 880 | 1150 | 3S Lipo | Passed | |
T-Motor | 3506 | 650 | 1238/1340 | 3S Lipo | Passed |
3510 | 430 | 1340/1550 | 6S Lipo | Passed | |
4014 | 330 | 1550 | 6S Lipo | Passed | |
3508 | 380 | 1340/1550 | 6S Lpo | Passed | |
...... |
BEC: | Kein/No BEC |
Betriebsspannung: | 11.1V-14.8V (3-4S) |
max. Strom: | 20A |
